Driver / Driver-Rev Coronary Microcatheter
Driver™ and Driver-Rev™ are coronary microcatheters developed by Shunmei for coronary intervention procedures. As microcatheters for coronary intervention, they are designed to support guidewire crossing, guidewire exchange, and contrast media injection in selected coronary vessel pathways.
Driver is intended to be percutaneously introduced into coronary vessels and support a guidewire when crossing localized stenotic lesions. Driver-Rev is designed for retrograde crossing support, offering additional product options for different coronary intervention needs.

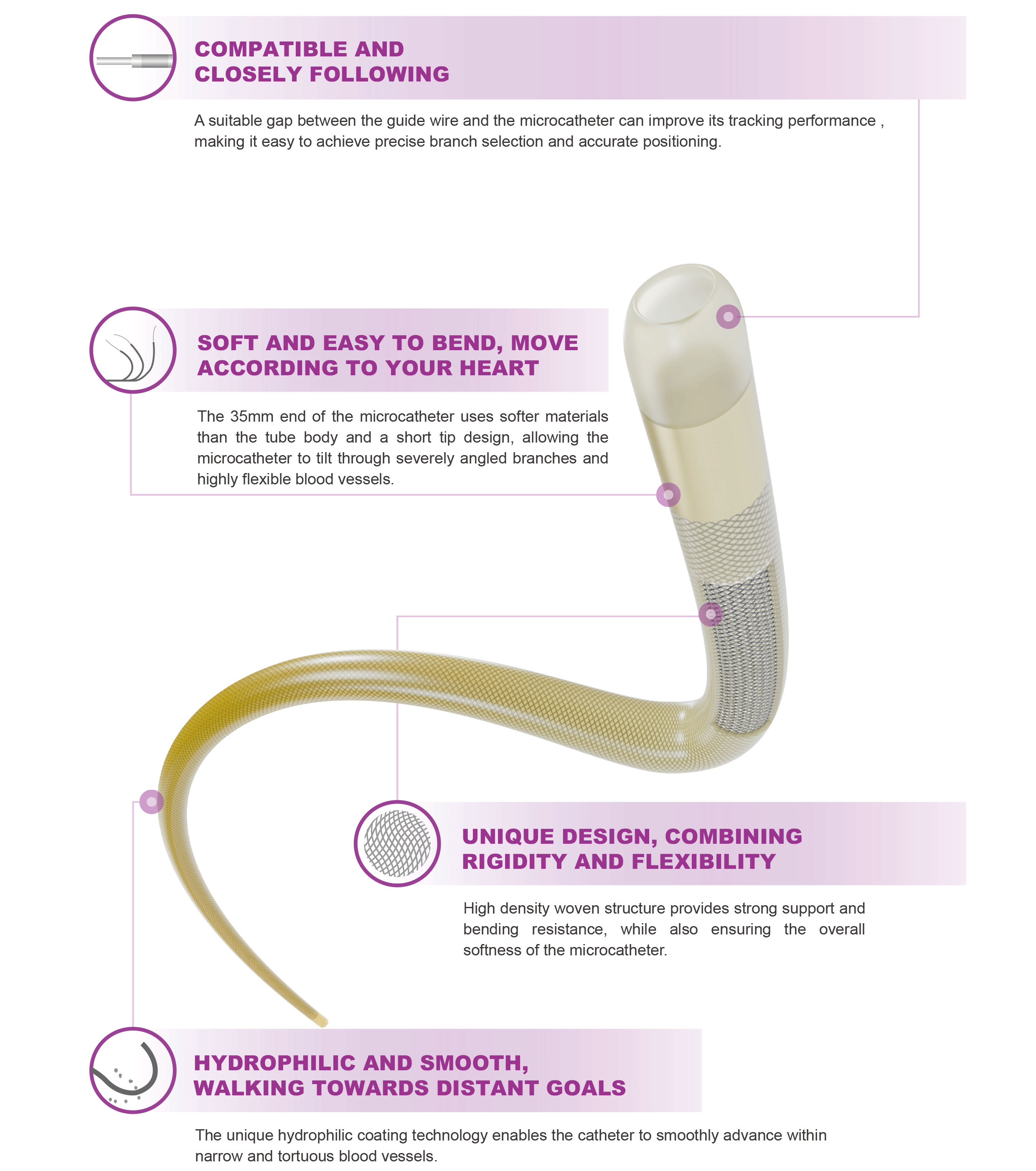

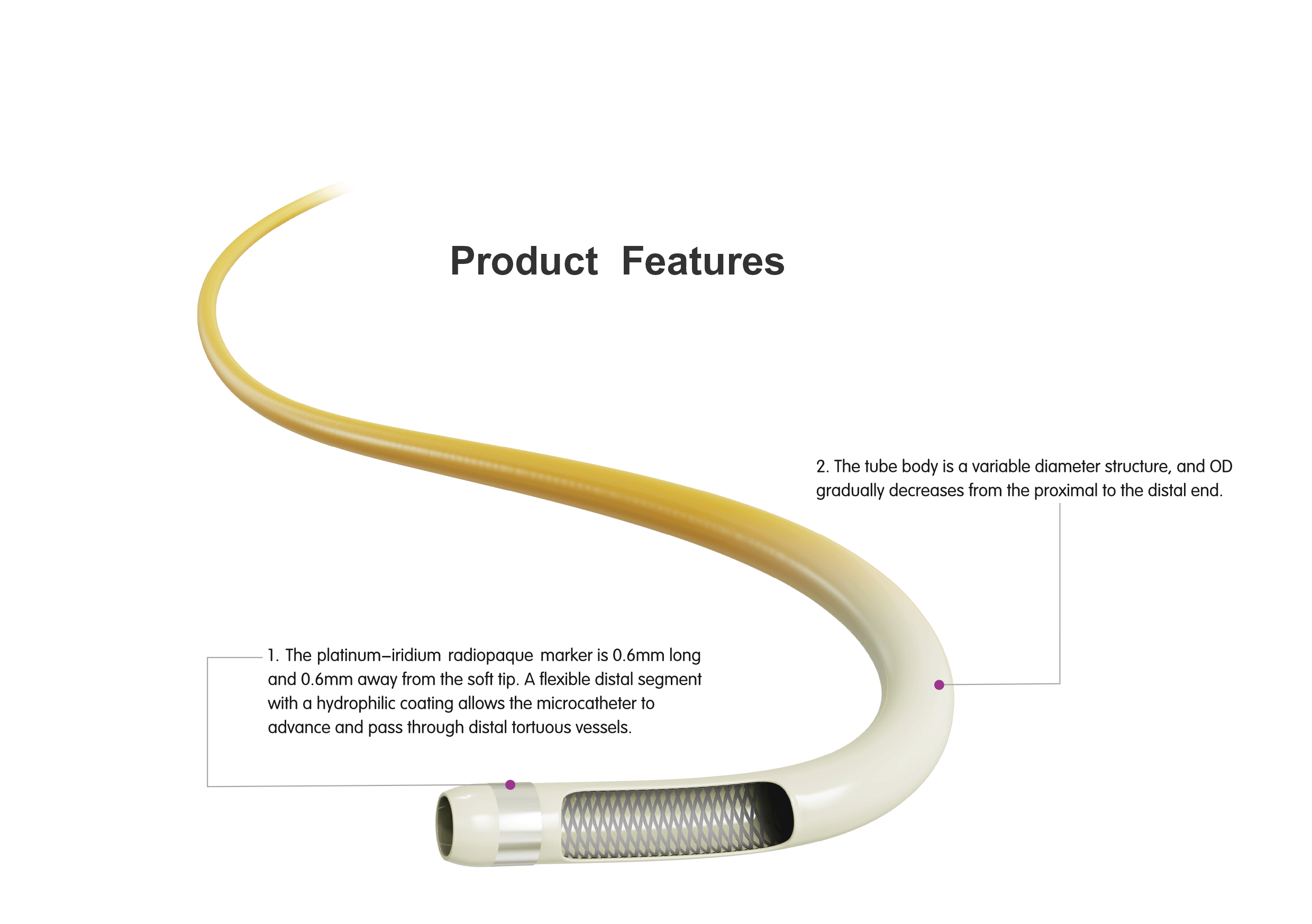

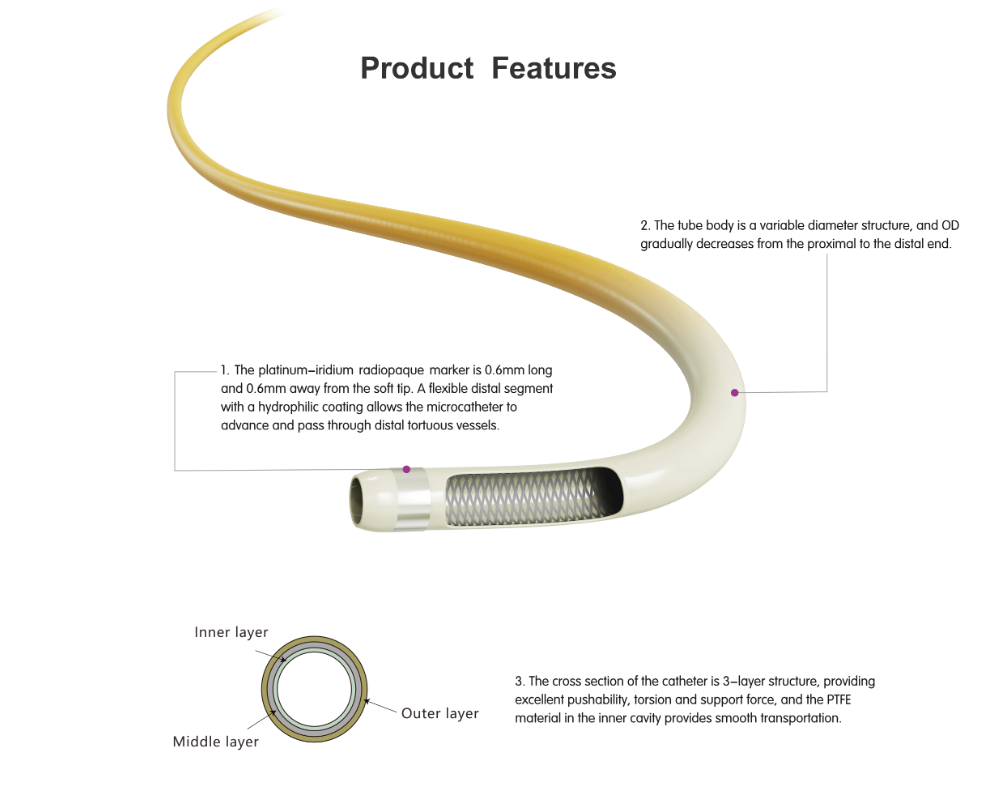

Key Features of Driver Coronary Microcatheters
Driver coronary microcatheters are designed with structural features that support trackability, guidewire support, and catheter delivery in coronary intervention.
- Flexible distal segment with hydrophilic coating supports advancement through distal tortuous vessels.
- Platinum-iridium radiopaque marker supports visibility during positioning.
- Variable diameter tube body gradually decreases from the proximal to distal end.
- Three-layer catheter structure supports pushability, torque response, and catheter support.
- PTFE inner layer supports smooth guidewire movement and contrast media delivery.

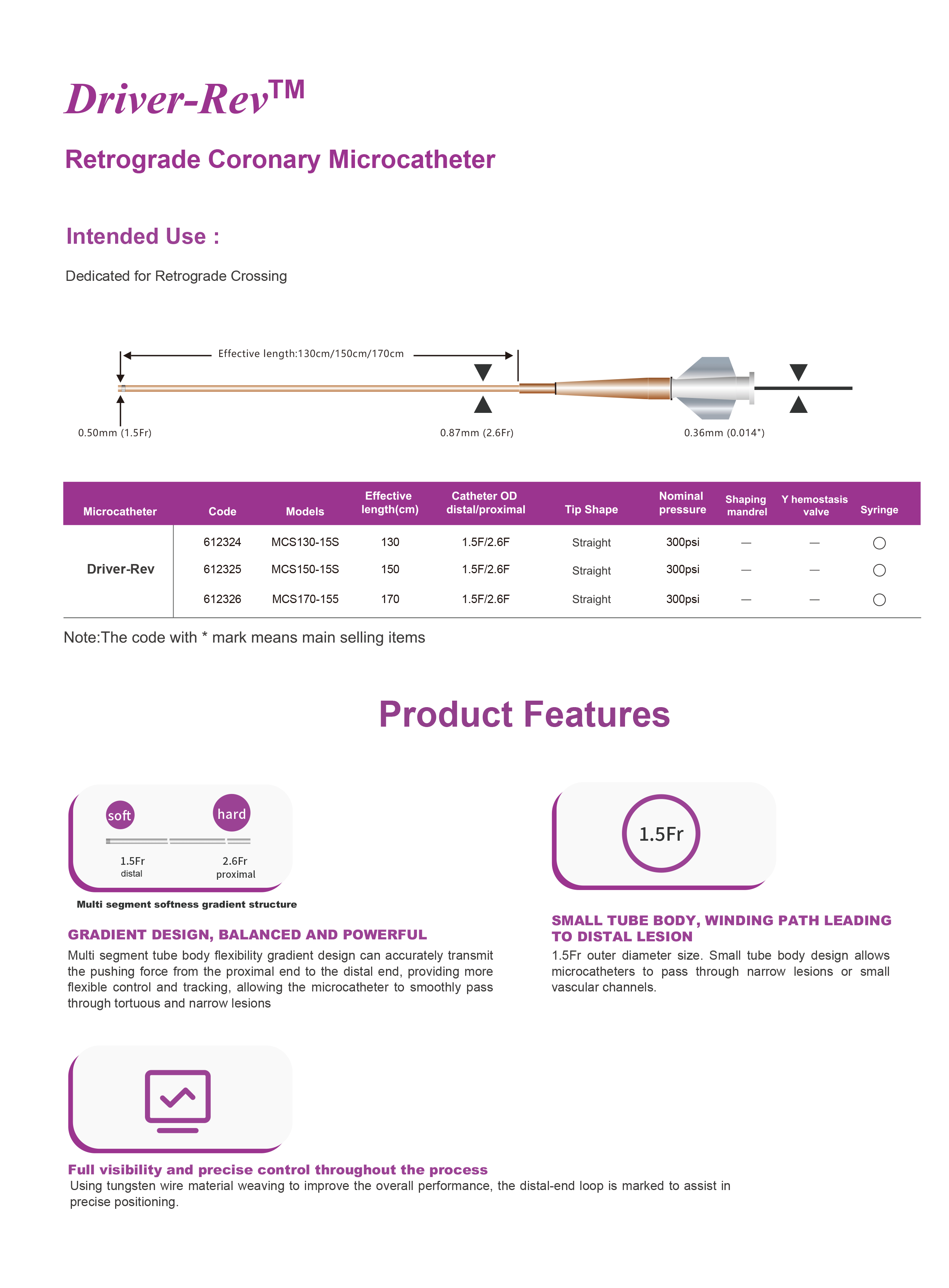

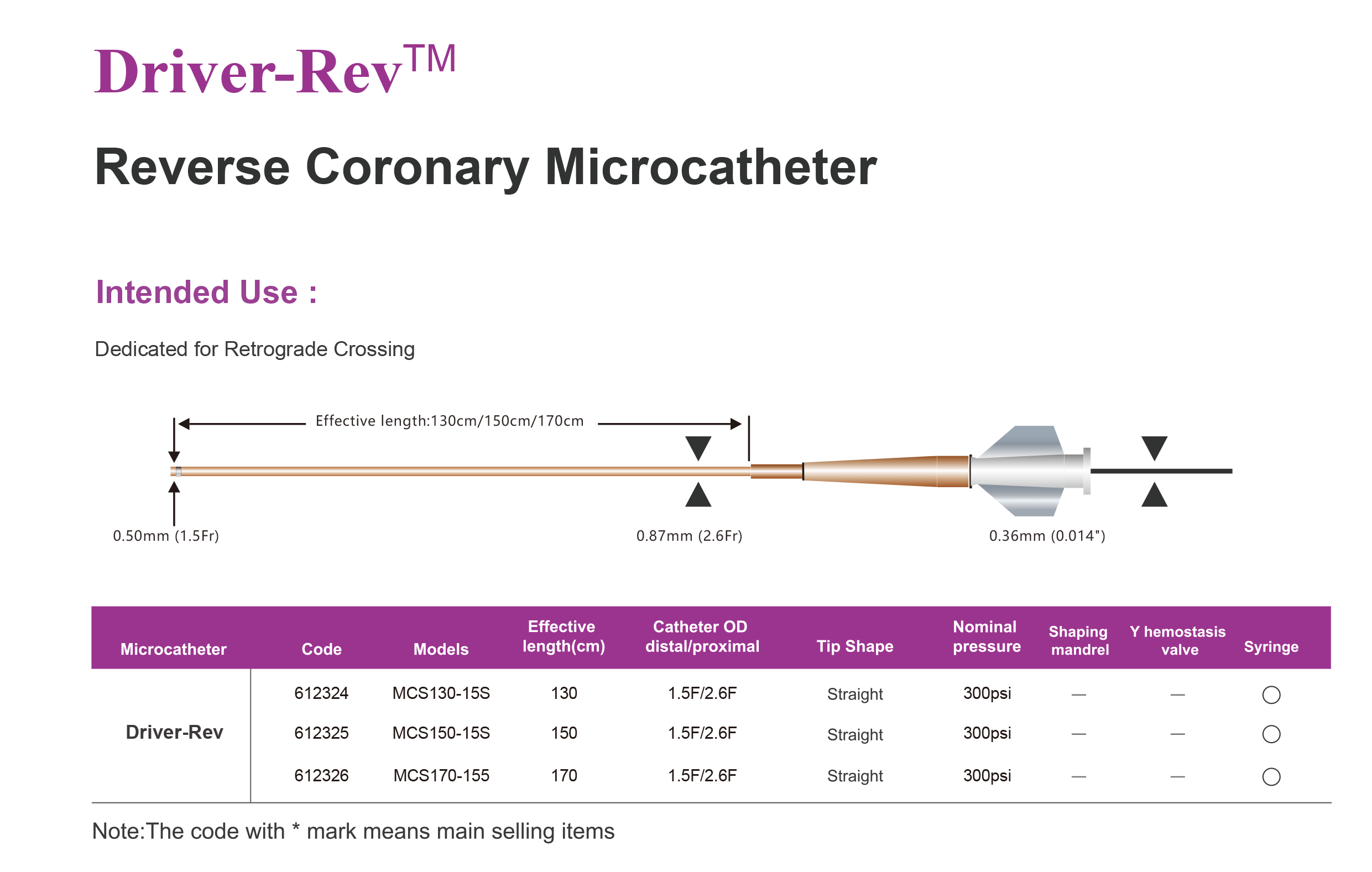

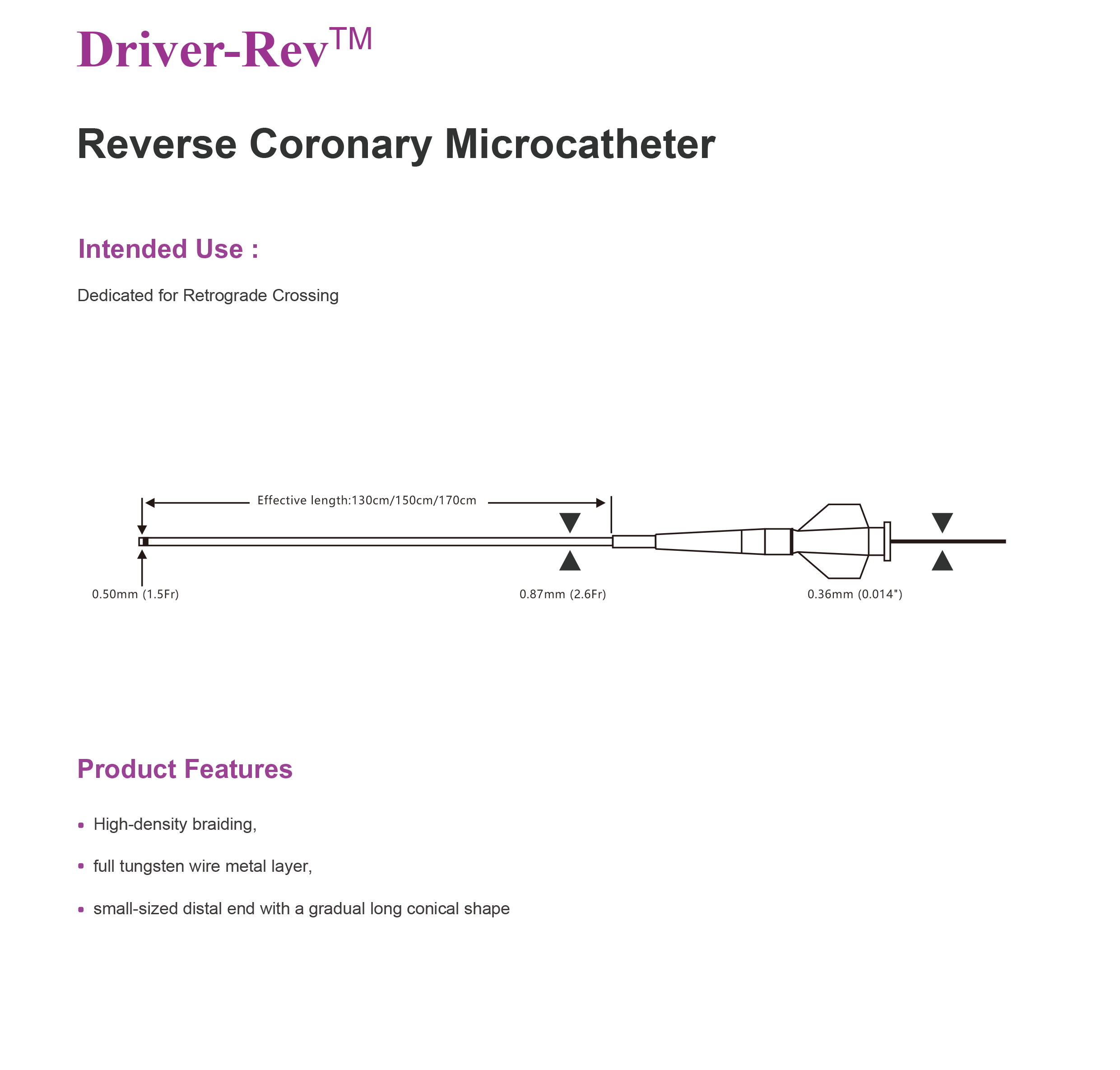

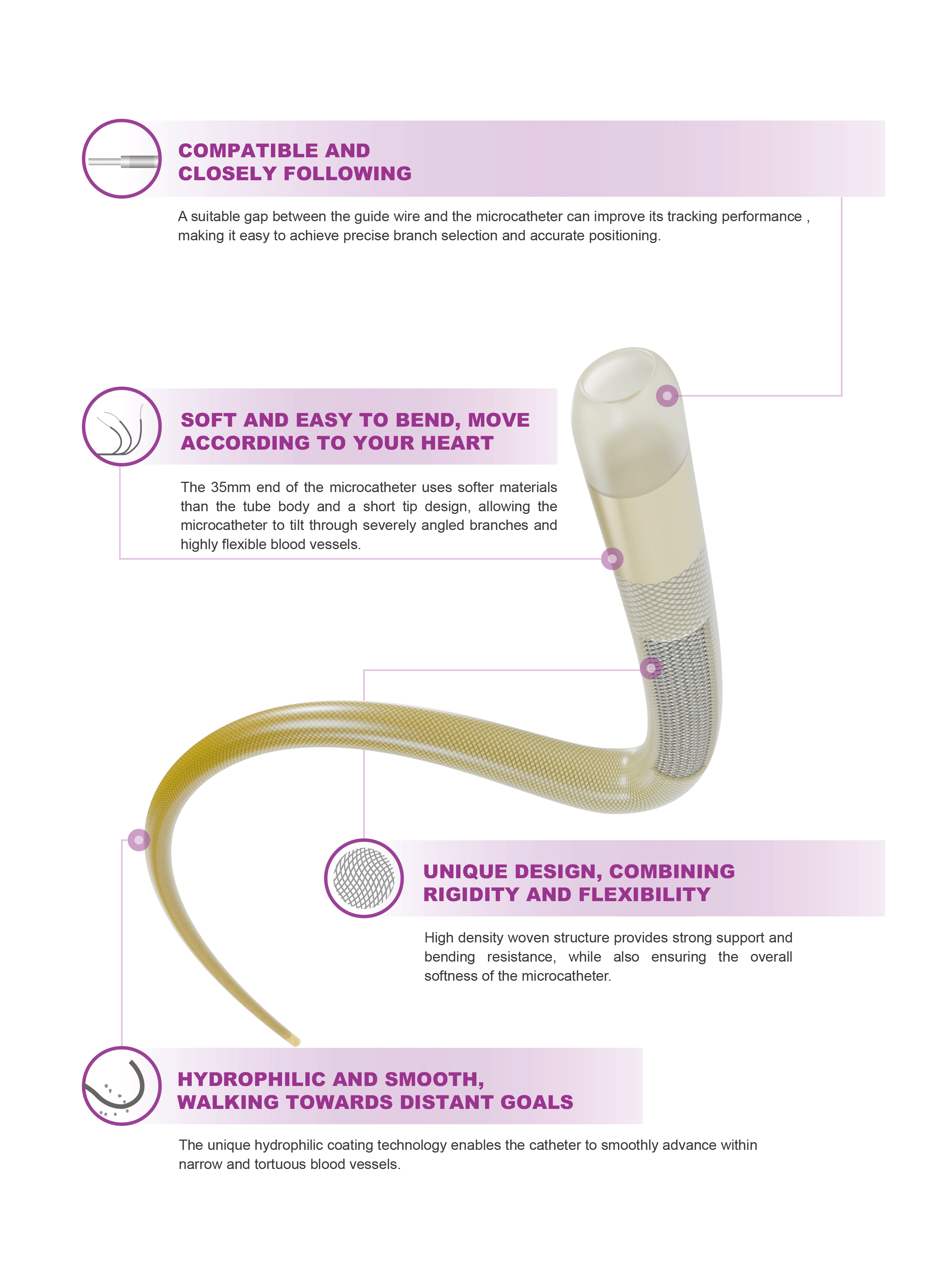

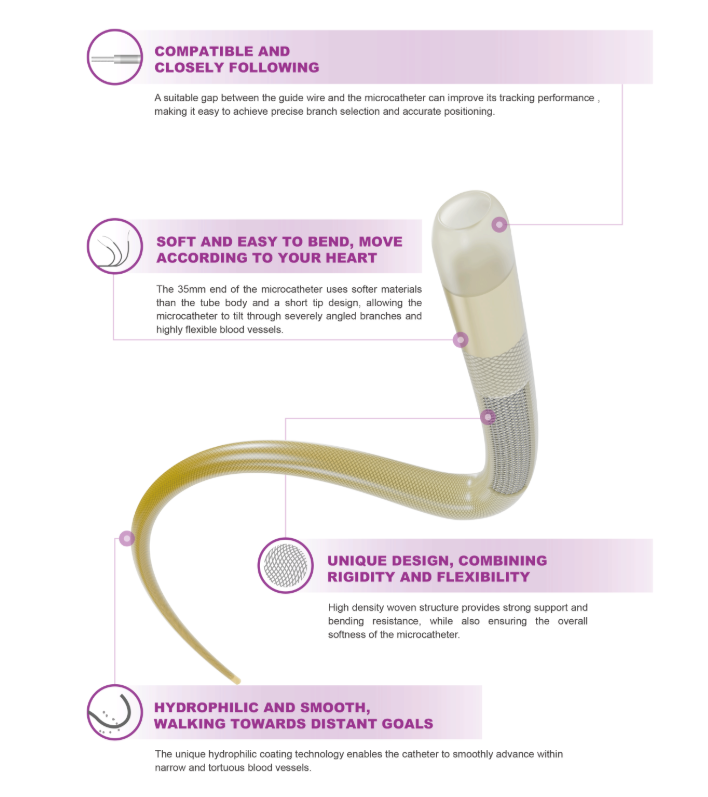

Driver-Rev for Retrograde Coronary Crossing
Driver-Rev™ is designed for retrograde crossing support in coronary intervention. Its product design focuses on distal flexibility, guidewire compatibility, visibility, and controlled support in tortuous or narrow vessel pathways.

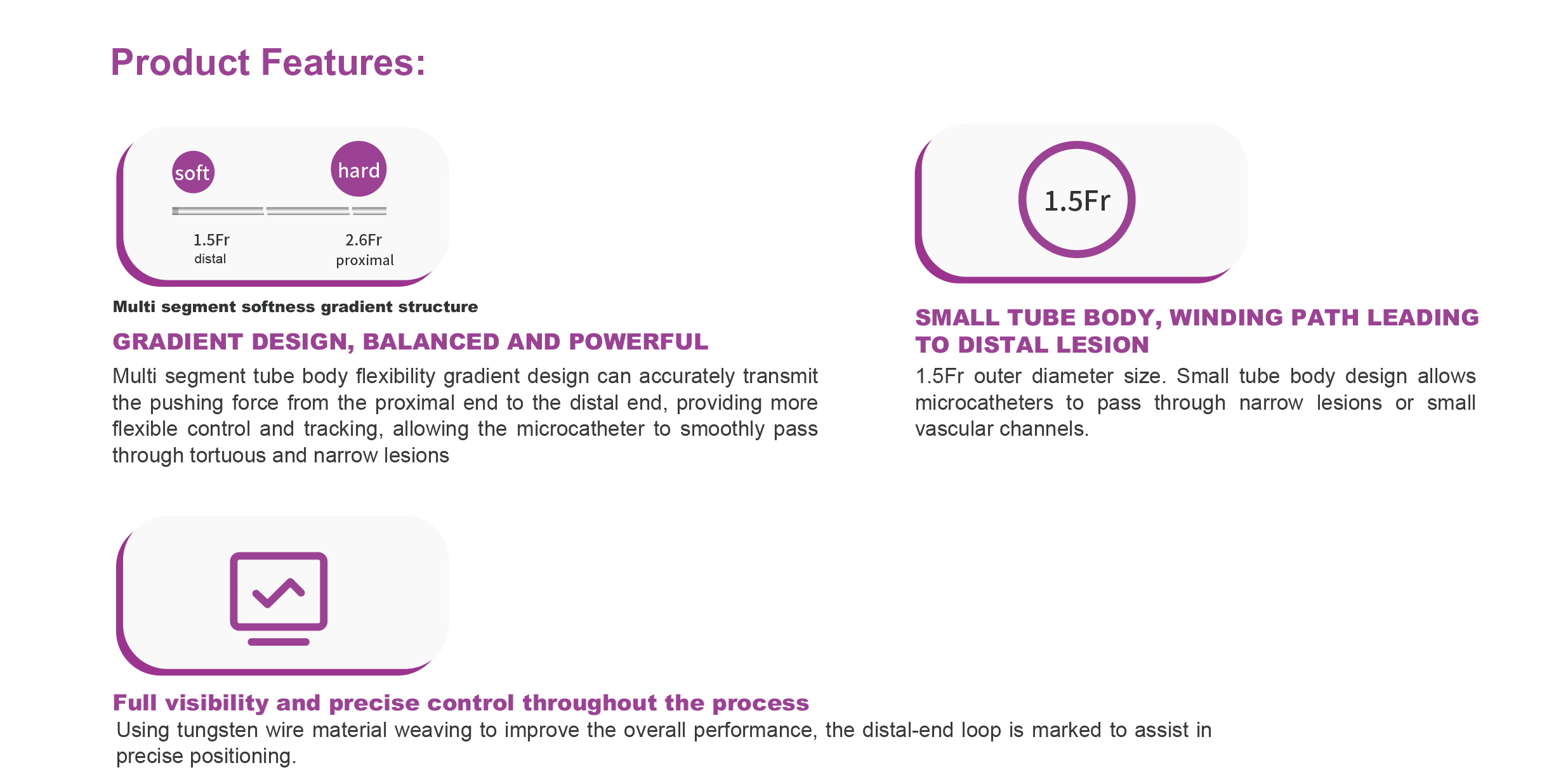

Key design features include:
- Multi-segment softness gradient structure for balanced support and flexibility
- 1.5F distal outer diameter for narrow lesion or small vascular channel access
- Tungsten wire structure designed to support visibility and positioning
- Soft distal segment to support bending through angled branches
- Hydrophilic coating designed to support smooth advancement through tortuous vessels
Technical Specifications
Driver and Driver-Rev are available in different lengths and structural configurations to support varied coronary intervention requirements. Specifications may vary by model. Please contact Shunmei for the latest product documentation.

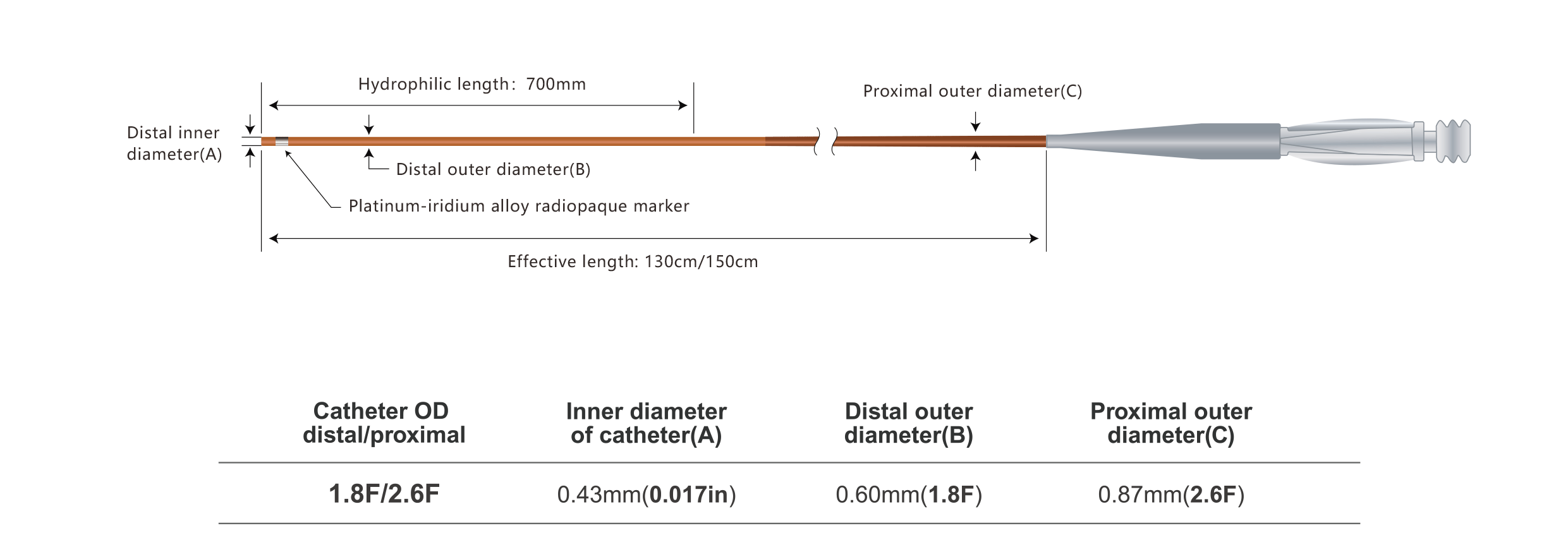

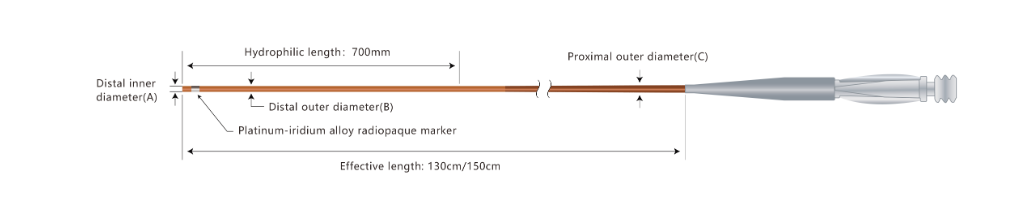

Driver™ Coronary Microcatheter
| Technical Item | Specification |
|---|---|
| Product name | Driver™ Coronary Microcatheter |
| Intended use | Guidewire support, guidewire exchange, and contrast media injection in coronary vessels |
| Effective length | 130 cm / 150 cm |
| Hydrophilic coating length | 700 mm |
| Radiopaque marker | Platinum-iridium alloy radiopaque marker |
| Structure | Three-layer catheter structure |
| Inner layer | PTFE inner layer |
| Design focus | Guidewire support, catheter delivery, and contrast media injection |

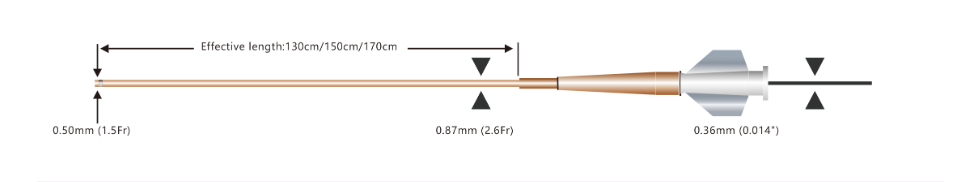

Driver-Rev™ Retrograde Coronary Microcatheter
| Technical Item | Specification |
|---|---|
| Product name | Driver-Rev™ Retrograde Coronary Microcatheter |
| Intended use | Retrograde coronary crossing support |
| Effective length | 130 cm / 150 cm / 170 cm |
| Distal outer diameter | 1.5F |
| Proximal outer diameter | 2.6F |
| Guidewire compatibility | 0.014 in |
| Nominal pressure | 300 psi |
| Design focus | Retrograde crossing, distal flexibility, and guidewire support |
Models and Sizes

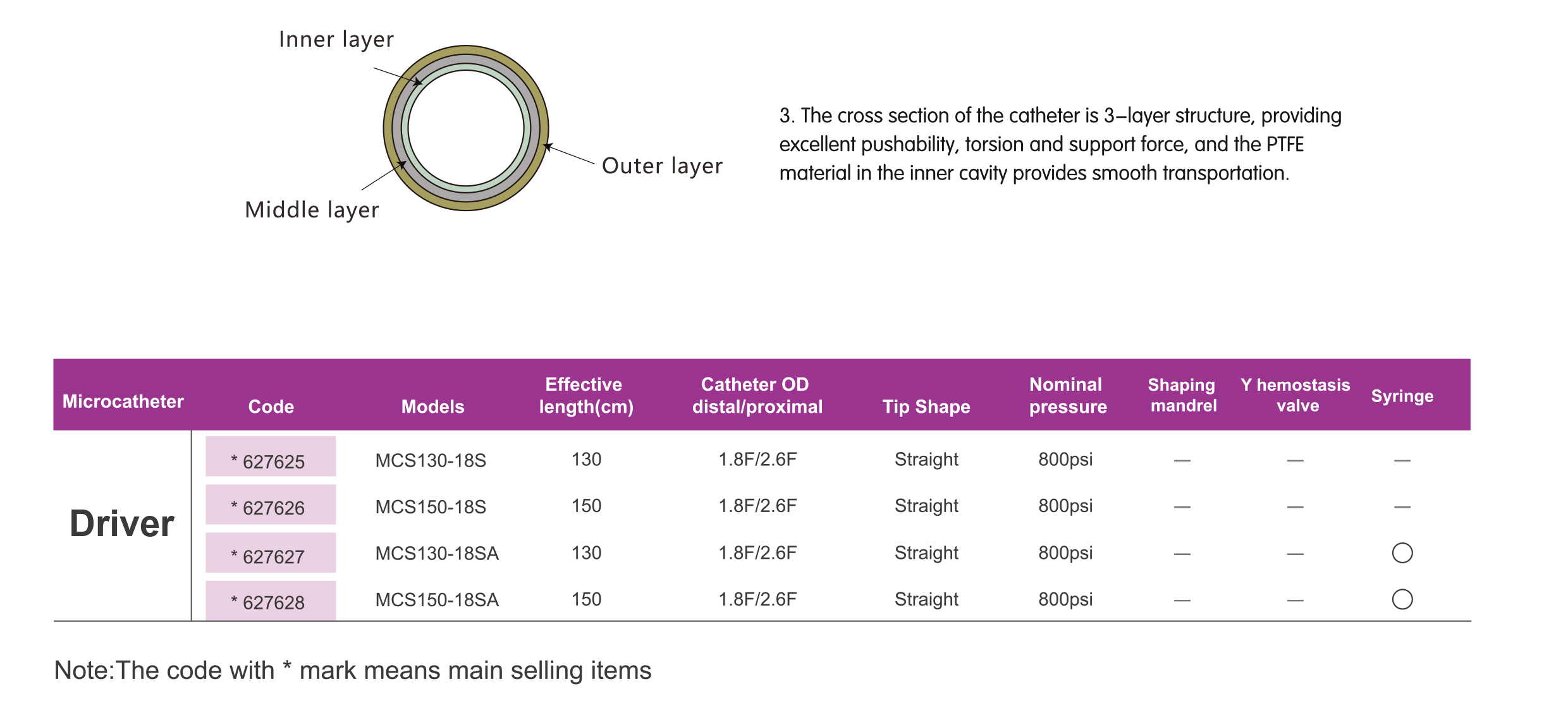

Driver™
| Code | Models | Effective length (cm) | Catheter OD distal/proximal | Tip Shape | Nominal pressure |
|---|---|---|---|---|---|
| 627625 | MCS130-185 | 130 | 1.8F/2.6F | Straight | 800 psi |
| 627626 | MCS150-185 | 150 | 1.8F/2.6F | Straight | 800 psi |
| 627627 | MCS130-1854 | 130 | 1.8F/2.6F | Straight | 800 psi |
| 627628 | MCS150-1854 | 150 | 1.8F/2.6F | Straight | 800 psi |
Note: The code with mark means main selling items.

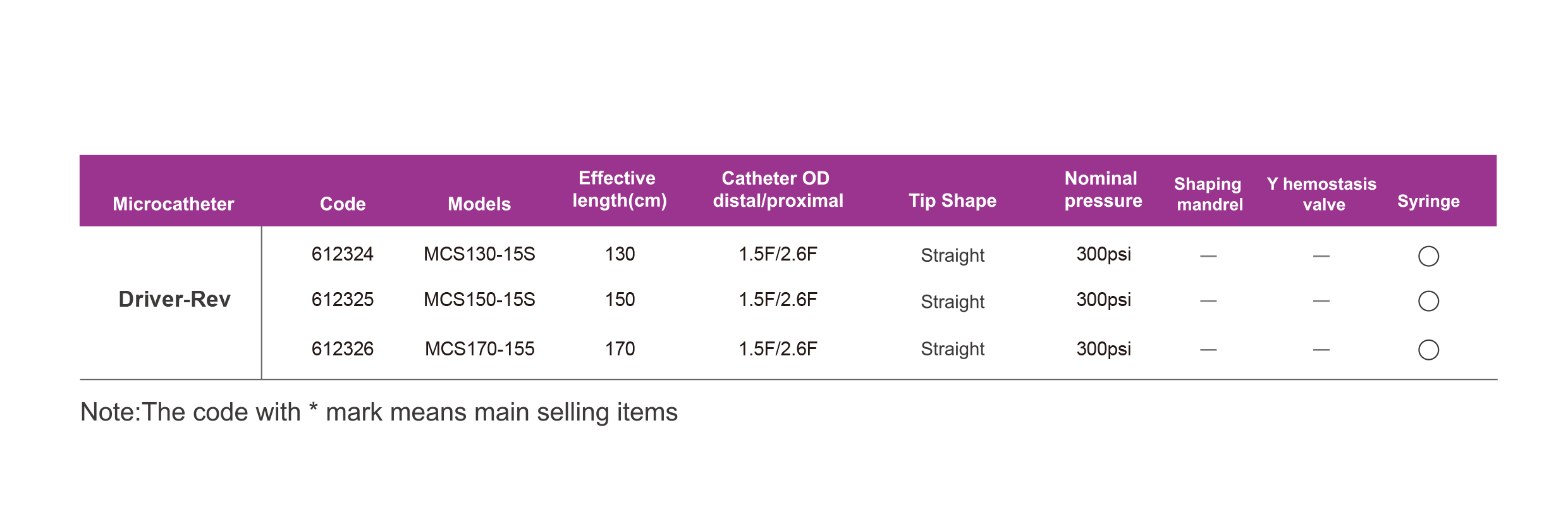

Driver-Rev™
| Code | Models | Effective length (cm) | Catheter OD distal/proximal | Tip Shape | Nominal pressure |
|---|---|---|---|---|---|
| 612324 | MCS130-155 | 130 | 1.5F/2.6F | Straight | 300 psi |
| 612325 | MCS150-155 | 150 | 1.5F/2.6F | Straight | 300 psi |
| 612326 | MCS170-155 | 170 | 1.5F/2.6F | Straight | 300 psi |
Note: The code with mark means main selling items.
Specifications may vary by model. Shunmei provides updated technical documentation to support product evaluation and cooperation discussions. Please contact Shunmei for more information.
Shunmei Support for Coronary Microcatheter Products
As a coronary microcatheter supplier, Shunmei supports Driver and Driver-Rev with experience in interventional catheter product development and manufacturing. Shunmei provides product specifications, technical documentation, and cooperation support to help healthcare partners evaluate coronary microcatheters for different market requirements.
