Lumin Double Lumen Catheter
Lumin is a double lumen catheter developed by Shunmei for coronary intervention, including PCI-related guidewire support applications. As a double lumen microcatheter, it is designed to accommodate two guidewires simultaneously, supporting guidewire control, branch selection, and catheter delivery in selected coronary procedures.
For healthcare partners looking for a dual lumen catheter for PCI, Lumin provides a catheter design focused on support, crossability, trackability, and controlled guidewire management.

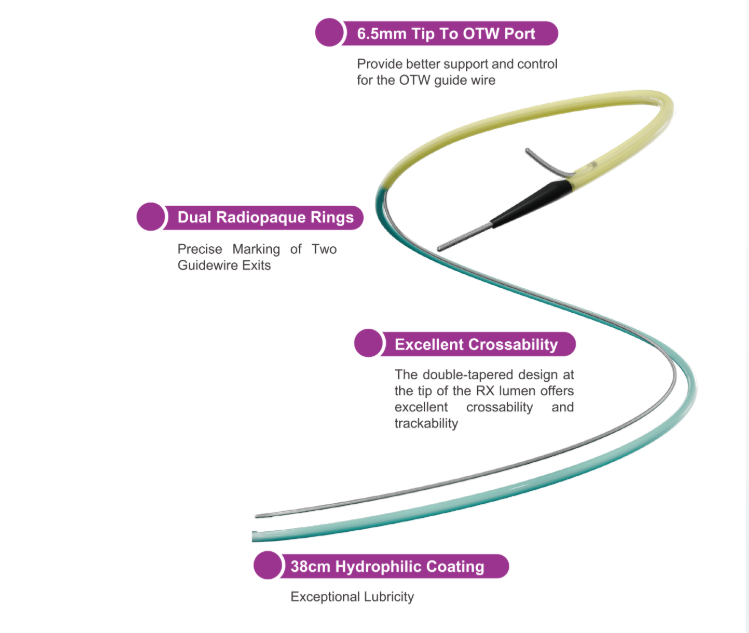

Key Features of Lumin Double Lumen Microcatheter
Lumin is designed with structural features that support two-guidewire procedures, guidewire positioning, and catheter delivery.
- Double lumen design accommodates two guidewires simultaneously while supporting control, support, and crossability.
- 6.5 mm tip-to-OTW port design provides support and control for the OTW guidewire.
- Dual radiopaque rings support clear marking of two guidewire exits.
- Double-tapered RX lumen tip supports catheter crossability and trackability.
- 38 cm hydrophilic coating supports catheter lubricity and smooth advancement.

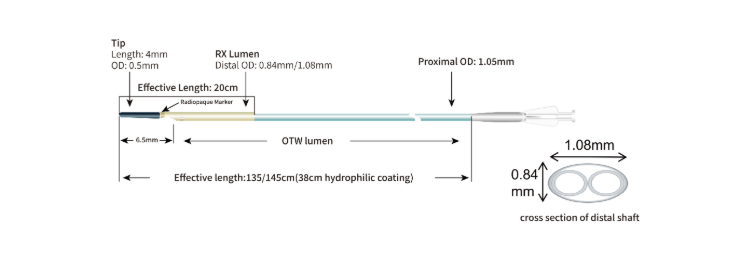

Technical Specifications
Lumin double lumen catheter is available in different model options to support varied coronary intervention requirements.
Product Overview
| Technical Item | Specification |
|---|---|
| Product name | Lumin Double Lumen Catheter |
| Manufacturer | Shunmei |
| Application focus | Coronary intervention and guidewire support |
| Effective length | 135 cm / 145 cm |
| Maximum distal catheter OD | 1.08 mm |
| Maximum proximal catheter OD | 1.05 mm |
| OTW lumen inner diameter | 0.43 mm |
| RX lumen / tip inner diameter | 0.41 mm |
Models, Sizes & Ordering Codes
Lumin double lumen catheter is available in multiple model and length configurations. The following ordering codes and specifications can be used when requesting a quotation or placing a procurement order.
Ordering Code Set 1 — Product Specification
| Code | Model | Maximum outer diameter of distal catheter | Maximum outer diameter of proximal catheter | Effective Length | Inner diameter of OTW lumen | Inner diameter of RX lumen / tip diameter |
|---|---|---|---|---|---|---|
| 632080 | DAMC-135 | 1.08 mm | 1.05 mm | 135 cm | 0.43 mm | 0.41 mm |
| 632079 | DAMC-145 | 1.08 mm | 1.05 mm | 145 cm | 0.43 mm | 0.41 mm |

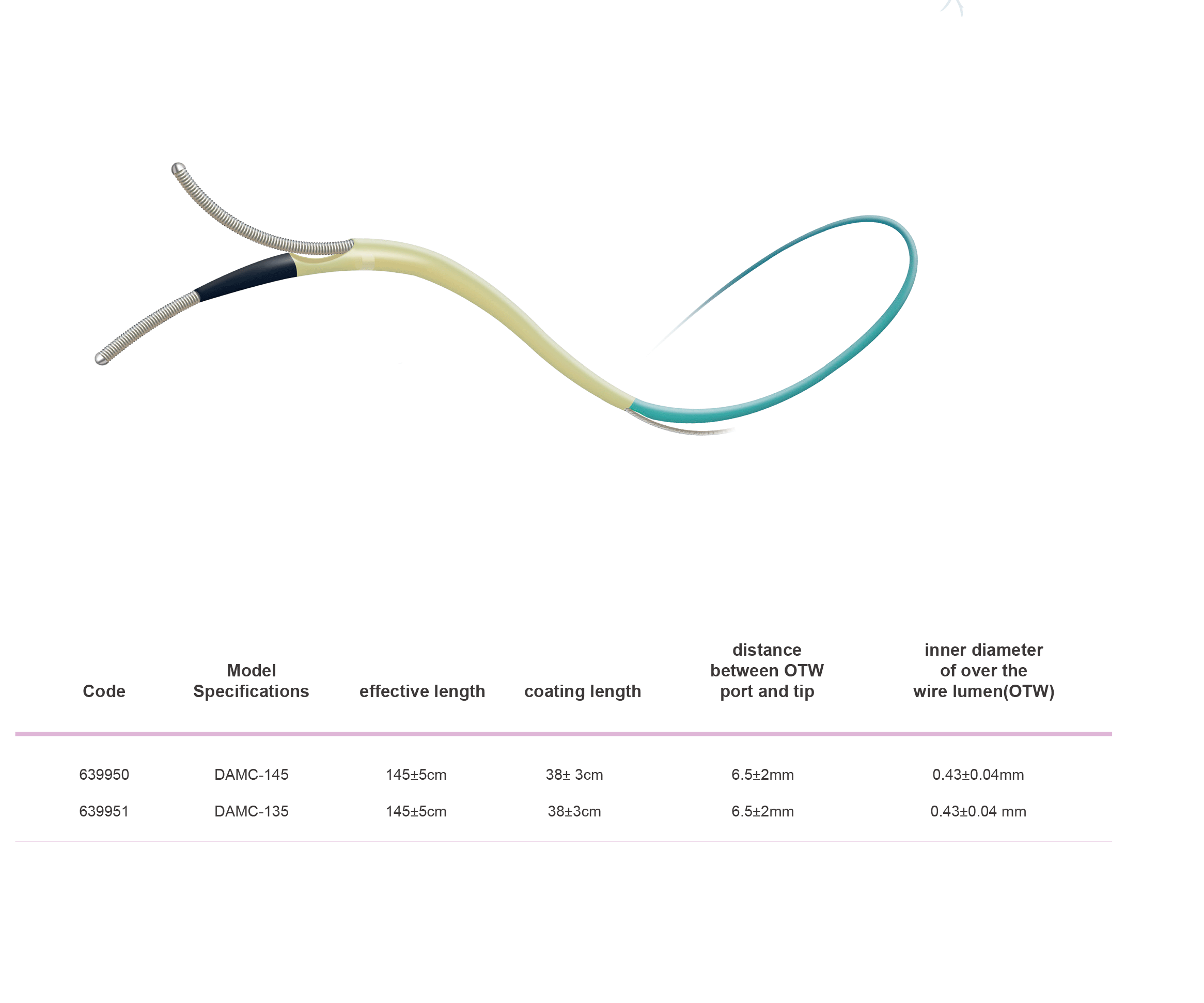

Ordering Code Set 2 — Extended Specifications
| Code | Model Specifications | Effective Length | Coating Length | Distance between OTW port and tip | Inner diameter of OTW lumen |
|---|---|---|---|---|---|
| 639950 | DAMC-145 | 145 ± 5 cm | 38 ± 3 cm | 6.5 ± 2 mm | 0.43 ± 0.04 mm |
| 639951 | DAMC-135 | 145 ± 5 cm | 38 ± 3 cm | 6.5 ± 2 mm | 0.43 ± 0.04 mm |
Ordering codes may vary by region, distributor, or procurement channel. Please confirm availability and exact product code with Shunmei when placing an order.
Shunmei Support for Lumin Double Lumen Catheter
As an interventional catheter manufacturer, Shunmei supports Lumin with experience in coronary microcatheter and catheter product development. Shunmei provides product specifications, technical documentation, and cooperation support to help healthcare partners evaluate Lumin for different market requirements.
For double lumen catheter price, model selection, or quotation information, please contact Shunmei with your target market, required specifications, and procurement needs.
